Uses：用途
The machine is used for produce paper straw
本机适用于生产纸吸管。
Feature : 特点
1,Adopt human-machine operation interface, more convenient for operation;
采用人机操作界面，操作更方便;
2,Aluminium Paper reeling stand , Slitting rolls are easily placed into reel stand
铝型材纸架， 分切卷轴可轻松放置在纸架。;
3,Surface Paper is Single side cotaing , middle layer paper is double glue coating
面纸单面上胶，底纸双面上胶。
4,Spiral winding part , specialized operation system , Belt tension device (hand-wheel driven)
螺旋卷绕部分，专业操作系统，皮带张紧装置（手轮驱动）
5,6 knife System in-line cutting unit controlled by encoder .，cutting final paper tube directly ， Servo motor control cutting system。
6把刀系统在线切割单元由编码器控制。伺服电机驱动切割单元。
6. Stainless steel body ，meet food grade production standards 。
不锈钢机身，符合食品级生产标准。
7 , Protection cover ，conform to ISO and 6S factory inspection standard
机身防护性罩壳，符合ISO ，6S验厂标准。
8,Automatic Stop when the paper break
堵纸自动停机
9. Glue tank constant temperature system , Improve glue stability.
胶盆恒温系统，提交胶水稳定性。
Main technical parameter :
主要技术参数
|
内径 |
Inner Diameter |
4.3-12mm |
|
纸卷 |
Paper Roll |
2-3 Plies |
|
厚度 |
Thickness |
0.25-1mm |
|
切管长度 |
Cutting Length |
120-1070mm |
|
机头 |
Hub Wheel |
Two Head 2机头 |
|
固定方式 |
Way Of Fixing Shaft |
Clamp 固定爪 |
|
生产速度 |
Production speed |
10-55m/Min (20-30 degree summer 20-55m/min , 0-10 degree Winter 10-35m/min ) |
|
切管方式 |
Way Of Cutting |
58*38*1.5mm Circular Cutting Blade 圆刀 |
|
上胶方式 |
Way Of Gluing |
Single / Double Side 单面/双面 |
|
切刀 |
Blade |
6 Groups 6组 |
|
纸架 |
Paper Reel Stand |
6 Plies Paper Reel Stand 6层纸架 |
|
胶水盆 |
Glue System |
2 plies independent glue tank 2层胶盆过胶 |
|
主电机 |
Main Motor |
1.5kwx2 CHINA KEJIN |
|
变频器 |
Inverter |
4kw Germany Siemens 德国西门子 |
|
伺服电机 |
Servo Motor |
1kw Germany Siemens 德国西门子 |
|
气动元件 |
Pneumatic Component |
China Taiwan Airtac 台湾亚德客 |
|
低压电器 |
low-voltage apparatus |
Schneider 施耐德 |
|
控制系统 |
Control System |
China ，by Sunlight Machinery |
|
导轨 |
Linear Guide System |
JAPAN THK 日本THK |
|
操作工 |
Operator |
1 Persons 1个工人 |
|
主机尺寸 |
Main Part Dimension |
3550*1100*1450mm |
|
占地面积 |
Overall Dimension |
7500*4800*1500mm |
|
重量 |
Weight |
2100kgs |
|
刮胶方式 |
Way Of Scraping Glue |
Independent Glue Box/Polyurethane Scraping Blade 独立胶盆 |
|
出吸管方式 |
Moving Finished Paper Straw |
Automatically 自动 |
|
上油 |
Lubricating Oil |
Automatic Giving 自动 |
|
L型理管机 |
L model |
|
|

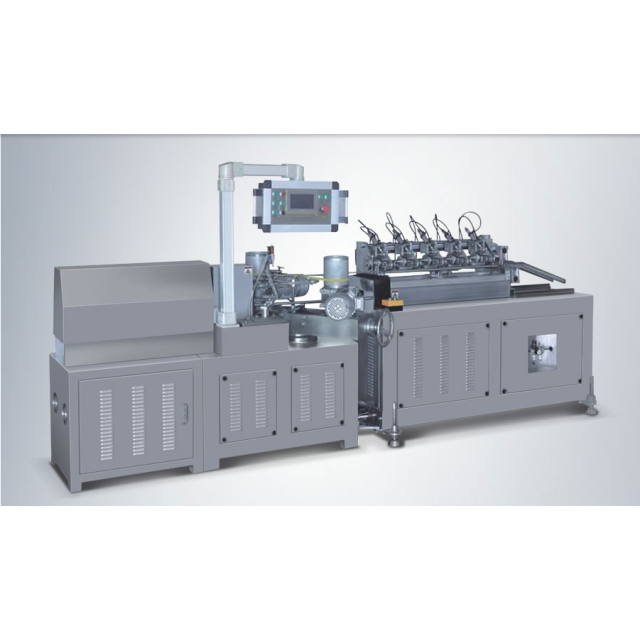

The machine mainly includes the following equipment (pictured) 机器主要包括以下部分 （图片所示） |
|
Multi-knife System Online Cutting Paper Straw Machine Spec 多刀纸吸管机 |
|
One Unit 6 Layer Reel Stand 1套6层的纸架 |
|
One Unit 2 Layer Glue Unit 1套2层胶架 |
|
One Unit Spiral Paper Tube Machine With Online Cutting System 1套卷管部分和在线切管部分 |
|
One Unit L Type Paper Straw Gathering Machine 1套 L型理管机 |
